Trusted Manufacturer of Nickel Alloy 400 Rod in India ,Offers Excellent Corrosion Resistance
Nickel Alloy 400 Rod
Monel N04400 Alloy Rod
WNR 2.4360 Hex Bar
Table of Content

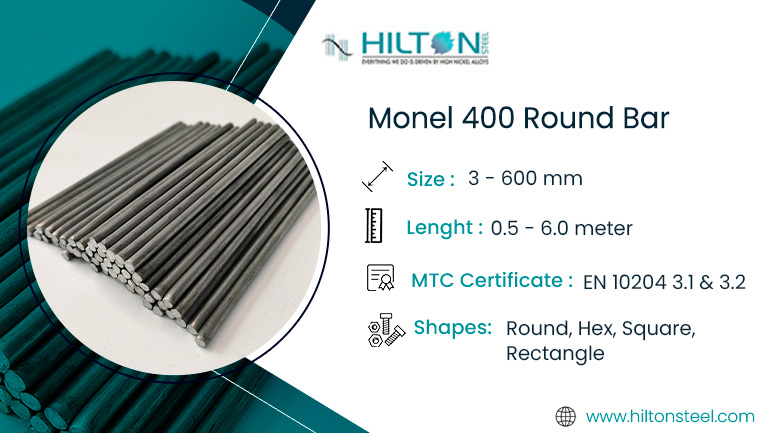

Monel 400 Round Bar Specifications
Monel 400 Rod Sizes
- Round: 3 - 800mm
- Flat: 2 -100mm
- Square: 4 - 100mm
- Hex: 2 - 100mm A/F
- Length: 9 to 12 Metrs.
Nickel alloy 400 Hex Bar Standards
- ASTM B164
- ASME SB 164
Monel 2.4360 Flat Bar Temprature
- 1700°F - 2150°F
DIN 2.4360 Square Bar Tolerance
- H8-H11 & K9-K12
Monel Alloy 400 Rounds Documentation
- Mill Test Certificates
- PMI Test Reports
- Visual Inspection
Alloy 400 Forged Bar Surface Finish
- Black, Bright Polished
- Rough Turned, No.4 Finish
- Matt Finish, Ba Finish
ASTM B164 UNS N04400 Bright Bar Application
- Aerospace
- Nuclear Power
- Pollution Control Equipment
- Marine Applications
2.4360 Monel 400 Hexagon Bar Features
- Solid Solution in Strengthened Alloy
- Weldable are Moderate
- Workable & Ductile
- Magnetic in Some Conditions
Nickel 400 Hexagon Rod Conditions
- Polished, Hardened
- Hot Rolled Pickled
- Tempered and Annealed
- Cold Drawn
UNS 4400 Black Bar Marking
- Rating Designation
- Material Designation
- Heat Code
- Grade
EN 2.4360 Rectangular Bar Value Added Services
- Heat Treatment, Annealed
- Pickled, Polish, Rolling, Forging
- Machining, Centreless Grinding
ASTM B164 UNS N04400 Cold Drawn Bar Certificates
- EN 10204 3.1/3.2
- 100% Radiography Test
- Raw Material Certificate
- Third Party Inspection
Werkstoff NR.2.4360 Annealed Round Bar Testing Methods
- Hardness Test
- Pitting Resistance Test
- Chemical Test
- Mechanical Test
Monel 400 Hexagonal Bar Delivered Areas
- Brazil
- Indonesia
- Singapore
- South Africa
WNR 2.4360 Cold Rolled Round Bar Packing Methods
- Foam Packaging
- Wooden Cases
- PE Fabric Bundles
- Wrapped in Plastic
ASTM B164 Bar Shape
- Rectangle
- Hex
- Round
- Square
Monel N04400 Flat Bar & Alloy 400 Rod With Diameter Ranging From 3 – 180 mm or Custom
| Metric | Japanese | ASTM/ Canadian | US Bar | ||||
|---|---|---|---|---|---|---|---|
| Diameter (mm) | Bar Size | Diameter (mm) | Bar Size | Diameter (mm2) | Bar Size | Diameter (Inch) | Bar Size |
| 5 | 5 | 6 | 6 | 100 | 10M | 0.250 | #2 |
| 5.5 | 5.5 | 10 | 10 | 200 | 15M | 0.375 | #3 |
| 6 | 6 | 13 | 13 | 300 | 20M | 0.500 | #4 |
| 7 | 7 | 16 | 16 | 500 | 25M | 0.400 | #5 |
| 8 | 8 | 19 | 19 | 700 | 30M | 0.750 | #6 |
| 9 | 9 | 22 | 22 | 1000 | 35M | 0.875 | #7 |
| 10 | 10 | 25 | 25 | 1500 | 45M | 1.000 | #8 |
| 11 | 11 | 29 | 29 | 2500 | 55M | 1.125 | #9 |
| 12 | 12 | 32 | 32 | 1.250 | #10 | ||
| 14 | 14 | 35 | 35 | 1.375 | #11 | ||
| 16 | 16 | 38 | 38 | 1.500 | #12 | ||
| 18 | 18 | 41 | 41 | 1.400 | #13 | ||
| 20 | 20 | 44 | 44 | 1.750 | #14 | ||
| 22 | 22 | 48 | 48 | 1.875 | #15 | ||
| 25 | 25 | 51 | 51 | 2.000 | #16 | ||
| 28 | 28 | 57 | 57 | 2.250 | #18 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
ASTM B164 UNS N04400 Flat Bar Size Chart
| Nominal Flat Bar Size's | Kg’s per Metre |
|---|---|
| 13 x 3 | 0.31 |
| 16 x 3 | 0.38 |
| 16 x 8 | 1.03 |
| 20 x 5 | 0.81 |
| 20 x 10 | 1.61 |
| 25 x 5 | 1.01 |
| 25 x 8 | 1.61 |
| 25 x 12 | 2.41 |
| 32 x 5 | 1.29 |
| 32 x 8 | 2.06 |
| 32 x 12 | 3.09 |
| 40 x 5 | 1.61 |
| 40 x 8 | 2.58 |
| 40 x 12 | 3.86 |
| 40 x 20 | 6.14 |
| 50 x 5 | 2.01 |
| 50 x 8 | 3.22 |
| 50 x 12 | 4.83 |
| 50 x 20 | 8.05 |
| 65 x 3 | 1.57 |
| 65 x 6 | 3.14 |
| 65 x 10 | 5.23 |
| 65 x 16 | 8.37 |
| 65 x 25 | 13.1 |
| 75 x 6 | 3.62 |
| 75 x 10 | 6.04 |
| 75 x 16 | 9.66 |
| 75 x 25 | 15.1 |
| 90 x 5 | 3.62 |
| 90 x 8 | 5.79 |
| 90 x 12 | 8.69 |
| 100 x 6 | 4.83 |
| 100 x 10 | 8.05 |
| 100 x 16 | 12.9 |
| 100 x 25 | 20.1 |
| 110 x 6 | 5.31 |
| 110 x 10 | 8.85 |
| 130 x 5 | 5.23 |
| 130 x 8 | 8.37 |
| 130 x 12 | 12.6 |
| 130 x 20 | 20.9 |
| 150 x 5 | 6.04 |
| 150 x 8 | 9.66 |
| 150 x 12 | 14.5 |
| 150 x 20 | 24.1 |
| 150 x 50 | 60.4 |
| 180 x 6 | 8.69 |
| 180 x 12 | 17.4 |
| 200 x 12 | 19.3 |
| 180 x 20 | 29.0 |
| 200 x 6 | 9.66 |
| 200 x 10 | 16.1 |
| 200 x 16 | 25.7 |
| 200 x 8 | 12.9 |
| 200 x 20 | 32.2 |
| 180 x 10 | 14.5 |
| 110 x 8 | 7.08 |
| 180 x 25 | 36.2 |
| 130 x 10 | 10.5 |
| 150 x 25 | 30.1 |
| 130 x 6 | 6.28 |
| 110 x 12 | 10.6 |
| 130 x 16 | 16.7 |
| 100 x 5 | 4.02 |
| 100 x 50 | 40.2 |
| 100 x 8 | 6.44 |
| 100 x 20 | 16.1 |
| 40 x 10 | 3.22 |
| 50 x 3 | 1.21 |
| 40 x 16 | 5.15 |
| 50 x 6 | 2.41 |
| 32 x 3 | 0.77 |
| 25 x 3 | 0.60 |
| 13 x 5 | 0.46 |
| 20 x 6 | 0.97 |
| 16 x 5 | 0.64 |
| 32 x 10 | 2.58 |
| 25 x 10 | 2.01 |
| 10 x 3 | 0.24 |
| 32 x 6 | 1.55 |
| 25 x 6 | 1.21 |
| 20 x 3 | 0.48 |
| 40 x 3 | 0.97 |
| 75 x 20 | 12.1 |
| 75 x 8 | 4.83 |
| 65 x 20 | 10.5 |
| 100 x 12 | 9.66 |
| 50 x 16 | 6.44 |
| 50 x 10 | 4.02 |
| 65 x 5 | 2.62 |
| 75 x 5 | 3.02 |
| 50 x 25 | 10.1 |
| 65 x 8 | 4.18 |
| 65 x 12 | 6.28 |
| 75 x 12 | 7.24 |
| 75 x 40 | 24.1 |
| 90 x 6 | 4.35 |
| 90 x 10 | 7.24 |
| 150 x 6 | 7.24 |
| 150 x 16 | 19.3 |
| 130 x 25 | 26.2 |
| 150 x 10 | 12.1 |
| 180 x 16 | 23.2 |
| 180 x 5 | 7.24 |
| 200 x 25 | 40.3 |
Size's of Werkstoff NR.2.4360 Hex Bar
| Nominal Size in Inch | Wall Thickness | |
|---|---|---|
| per 12' | per Ft | |
| 1/4" | 2.160 | 0.180 |
| 3/8" | 4.920 | 0.625 |
| 1/2" | 8.880 | 0.740 |
| 5/8" | 13.80 | 1.150 |
| 3/4" | 19.92 | 1.660 |
| 7/8" | 27.60 | 2.300 |
| 1" | 34.80 | 2.90 |
| 1-1/8" | 44.40 | 3.700 |
| 1-5/16" | 61.20 | 5.100 |
| 1-7/16" | 73.20 | 6.100 |
| 1-5/8" | 93.60 | 7.800 |
| 1-7/8" | 124.80 | 10.400 |
| 2-1/4" | 179.04 | 14.920 |
| 3/16" | 1.248 | 0.104 |
| 2-1/2" | 221.04 | 18.42 |
| 1-1/4" | 55.20 | 4.625 |
| 15/16" | 31.20 | 2.625 |
| 1-3/4" | 108.36 | 9.030 |
| 2" | 141.60 | 11.80 |
| 1-3/8" | 67.20 | 5.625 |
| 1-1/16" | 39.60 | 3.30 |
| 7/16" | 6.72 | 0.560 |
| 5/16" | 3.480 | 0.290 |
| 9/16" | 11.16 | 0.930 |
| 2-3/8" | 203.04 | 16.920 |
| 13/16" | 23.40 | 1.950 |
| 1-1/2" | 79.20 | 6.625 |
| 11/16" | 16.68 | 1.390 |
| 3" | 318.36 | 26.53 |
Types of Monel 400 Round Bar
Monel 400 Rod
Nickel alloy 400 Hex Bar
Monel 2.4360 Flat Bar
DIN 2.4360 Square Bar
Monel alloy 400 Rounds
Alloy 400 Forged Bar
ASTM B164 UNS N04400 Bright Bar
2.4360 Monel 400 Hexagon Bar
Nickel 400 Hexagon Rod
UNS 4400 Black Bar
EN 2.4360 Rectangular Bar
ASTM B164 UNS N04400 Cold Drawn Bar
Werkstoff NR.2.4360 Annealed Round Bar
Monel 400 Hexagonal Bar
WNR 2.4360 Cold Rolled Round Bar
ASTM B164 Hot Rolled Bar
ASTM SB 164 PSQ
Weight Chart of 2.4360 Monel 400 Hexagon Bar
| Nominal Sizes | Weight | Nominal Sizes | Weight | ||
|---|---|---|---|---|---|
| Kgs / Mtr | Kgs / Foot | Kgs / Mtr | Kgs / Foot | ||
| 3mm | 0.055 | 0.017 | 20mm | 2.470 | 0.753 |
| 3-1/2" | 48.772 | 14.850 | 26mm | 4.170 | 1.271 |
| 1/8" | 0.062 | 0.019 | 22mm | 2.979 | 0.908 |
| 3-3/4" | 55.780 | 17.001 | 24mm | 3.543 | 1.080 |
| 5/32" | 0.095 | 0.029 | 7/8" | 3.038 | 0.926 |
| 3-1/4" | 41.996 | 12.800 | 1" | 3.970 | 1.210 |
| 4mm | 0.098 | 0.030 | 1-1/8" | 5.033 | 1.534 |
| 3" | 35.762 | 10.900 | 1-1/4" | 6.349 | 1.924 |
| 3/16" | 0.141 | 0.043 | 25mm | 3.871 | 1.180 |
| 4-3/4" | 90.249 | 27.366 | 30mm | 5.548 | 1.691 |
| 5mm | 0.154 | 0.047 | 27mm | 4.490 | 1.368 |
| 4" | 63.340 | 19.306 | 1-3/8" | 7.550 | 2.303 |
| 7/32" | 0.190 | 0.058 | 32mm | 6.314 | 1.894 |
| 5-1/2" | 121.000 | 36.690 | 35mm | 7.553 | 2.390 |
| 6mm | 0.223 | 0.068 | 2-1/4" | 20.128 | 6.135 |
| 4-1/4" | 72.249 | 21.908 | 36mm | 7.999 | 2.438 |
| 1/4" | 0.249 | 0.076 | 2-3/4" | 30.083 | 9.169 |
| 4-1/2" | 80.340 | 24.4487 | 38mm | 8.903 | 2.792 |
| 7mm | 0.298 | 0.091 | 1-7/8" | 13.977 | 4.260 |
| 6-1/2" | 167.630 | 51.093 | 1-1/2" | 8.951 | 2.715 |
| 5/16" | 0.387 | 0.118 | 2-5/8" | 27.409 | 8.354 |
| 7-1/2" | 225.000 | 68.226 | 40mm | 9.872 | 3.009 |
| 8mm | 0.398 | 0.120 | 50mm | 15.414 | 4.698 |
| 5" | 99.940 | 30.461 | 1-5/8" | 10.449 | 3.200 |
| 9mm | 0.498 | 0.152 | 2-1/8" | 17.963 | 5.475 |
| 6" | 143.900 | 43.860 | 1-3/4" | 12.179 | 3.712 |
| 3/8" | 0.557 | 0.170 | 60mm | 22.205 | 6.768 |
| 8" | 254.55 | 77.586 | 45mm | 12.555 | 3.807 |
| 10mm | 0.620 | 0.189 | 2-3/8" | 22.435 | 6.838 |
| 7" | 196.000 | 59.432 | 48mm | 14.205 | 4.330 |
| 11mm | 0.748 | 0.228 | 11/16" | 1.880 | 0.573 |
| 9/16" | 1.256 | 0.383 | 2" | 15.906 | 4.848 |
| 7/16" | 0.761 | 0.232 | 3/4" | 2.237 | 0.682 |
| 10" | 397.140 | 121.048 | 15mm | 1.391 | 0.424 |
| 12mm | 0.889 | 0.271 | 2-1/2" | 24.856 | 7.576 |
| 5/8" | 1.551 | 0.473 | 16mm | 1.578 | 0.481 |
| 1/2" | 0.994 | 0.303 | 18mm | 2.001 | 0.610 |
| 17mm | 1.791 | 0.543 | 14mm | 1.207 | 0.368 |
Available Stock of WNR 2.4360 Hex Bar With H8 to H12 and K9 to K12 Tolerance
| Shape | Permitted Variation | Diameter Across Flats |
|---|---|---|
| mm | mm | |
| Round | + 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 |
≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 |
| Square and hexagon |
+ 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250 |
≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 |
| Flat (width) | + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00 |
< 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 |
| Flat (thickness) | + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350 |
< 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 |
Which Are The Surface Finish That Are Used for Monel 400 Round Bar ?
| SRE | Slit rolled edge | BD | Bright drawn |
|---|---|---|---|
| HRAP | Hot rolled annealed and pickled | CF | Cold finished |
| RT | Rough turned/peeled | P&T | Peeled and turned |
| P | Polished | CD | Cold drawn |
| HF | Hot finished | CG | Centreless ground |
| PR | Peeled and reeled | ST | Smooth turned |
ASTM B164 UNS N04400 Bright Bar Condition
| PH | Precipitation hardened. |
| ANN | Annealed |
| H&T | Hardened and tempered. |
Monel 400 Round Bar Supplier in India, Supplying Products That Are Expertly Crafted And Have Exceptional Corrosion Resistance.
Find ASTM B164 UNS N04400 Bright Bar & DIN 2.4068 Hex Bar Density kg/m3 , View Equivalent Grades
Mechanical Properties of Nickel Alloy 400 Hex Bar
Tensile Strength
Mpa- 550
Yield Strength
Mpa- 240
Elongation
%- 40%
Monel 2.4360 Flat Bar Chemical Composition
63
Nickel
0.3
Carbon
2.0
Manganese
28 - 34
Copper
0.02
Sulfur
0.5
Silicon
0.50
Aluminium
1 - 2.5
Iron
Equivalent Grades of DIN 2.4360 Square Bar
WERKSTOFF NR.
2.4360
UNS
N04400
JIS
NW 4400
GOST
МНЖМц 28-2,5-1,5
EN
NiCu30Fe
Monel 400 Round Bar Manufacturer in India, Renowned For Offering Higher Resistance That Works Effectively In Any Heat-related Application.
Monel Alloy 400 Rounds Physical Properties
| Properties | Value's |
|---|---|
| Density | 8.8 (g/cm3) |
| Thermal Conductivity | 21.8 (W/m.K) |
| Modulus of Elasticity | 180 (GPa) |
| Melting Point | 2460°F (1350°C) |
HS Code of Alloy 400 Forged Bar
| Grade | HS Code |
|---|---|
| Monel 400 Round Bar | 75051220 |
Keep ASME SB164 Monel Alloy 400 Round Bars of European and Korean Origin in Stock for Marine Engineering Uses
Nickel 400 Hexagon Rod Impact Strength Chart
| Tempered | Impact Strength, ft•lb | |
|---|---|---|
| Charpy U Notch | Izod | |
| Hot-Rolled | 220 | 100-120+ |
| Forged | - | 75-115 |
| Annealed | 215 | 90-120+ |
| Cold-Drawn | 150 | 75-115 |
Torsional Properties of UNS 4400 Black Bar
| Condition and Form | Diameter | Torsional Properties | Tensile Properties | Ratio | ||||
|---|---|---|---|---|---|---|---|---|
| Proportional Limit,ksi | Breaking Strength, ksi | Yield Strength (0.2% Offset), ksi | Tensile Strength, ksi | Torsional Breaking Strength | Tensile Strength | Ten sile Strength | ||
| Hot-Rolled | 1 | 23 | 66 | 38 | 86 | 0.349 | 0.267 | 0.768 |
| Cold-Drawn, 20% | 1 | 47 | 72 | 107 | 115 | 0.653 | 0.408 | 0.626 |
| 1.5 | 45 | 71 | 102 | 113 | 0.634 | 0.398 | 0.628 | |
EN 2.4360 Rectangular Bar Thermal Properties
| Temperature | Mean Linear Expansion | Electrical Resistivity | Specific Heat | ThermalConductivity | |||||
|---|---|---|---|---|---|---|---|---|---|
| °C | °F | µrn/m•°C | in/in/°F x 10-⁶ | J/kg•oC | 8tu/lb/°F | W/m•°C | Btu-in/h/ft21°F | µ!l•m | ohm-circ mil/ft |
| -70 | -100 | 12.1 | 6.7 | 378 | 0.088 | 19.8 | 139 | - | - |
| 100 | 200 | 14.2 | 7.7 | 445 | 0.105 | 24.0 | 167 | 0.537 | 322 |
| -200 | -320 | - | - | - | - | - | - | 0.360 | 205 |
| 800 | 1600 | 17.4 | 9.8 | - | - | 45 .5d | 335d | 0.658 | 403 |
| 600 | 1200 | 16.6 | 9.3 | - | - | 39.4 | 287 | 0.620 | 379 |
| -180 | -300 | 11.1 | 6.1 | 223 | 0.050 | 16.5 | 113 | - | - |
| 300 | 600 | 15.7 | 8.8 | 470 | 0.114 | 30.1 | 215 | 0.574 | 346 |
| 500 | 1000 | 16.3 | 9.1 | - | - | 36.5 | 264 | 0.603 | 367 |
| 700 | 1400 | 17.0 | 9.6 | - | - | 42.4 | 311 | 0.639 | 391 |
| 900 | 1800 | 17.7 | 10.0d | - | - | 48.8d | 360d | 0.675 | 415 |
| 21 | 70 | - | - | 427 | 0.102 | 22.0 | 151 | 0.511 | 307 |
| -130 | -200 | 11.4 | 6.4 | 320 | 0.078 | 18.2 | 130 | - | - |
| 200 | 400 | 15.2 | 8.6 | 459 | 0.110 | 26.9 | 193 | 0.559 | 337 |
| 400 | 800 | 16.1 | 8.9 | - | - | 33.4 | 238 | 0.587 | 355 |
| 1000 | 2000 | 18.1d | 10.3d | - | - | - | - | 0.692 | 427 |
What Are The Pros and Cons of Monel Alloy 400 Round Bar ?
What is The Weight Calculation Formula for Monel 400 Rod ?
| Type | Formula's |
|---|---|
| Round | Dia. (mm) x Dia. (mm) x 0.00623 = Wt. per Metr |
| Hex | Size (mm) x Size (mm) x 0.00680 = Wt. per Metr. |
| Flat | Width (mm) x Thickness (mm) x 0.00798 = Weight per Metr. |
| Square | Size (mm) x Size (mm) x 0.00788 = Wt. per Metr. |
Why Hilton Steel ?
