These diverse and trustworthy fittings comprise nickel (58%), chromium (up to 23%), and molybdenum (10%). Inconel 625 pipe fittings were first developed for steam piping but now serve multiple critical applications, like fuel refining, distillation towers, and heat exchangers.
- Brilliant resistance to crevice corrosion, stress-triggered cracking, and pitting: It can withstand water (fresh or sea), alkalis, and chloride ions. These fittings prevent damage caused by naphthenic and polythionic acids.
- High strength in cryogenic and elevated temperatures (up to 1800°F)

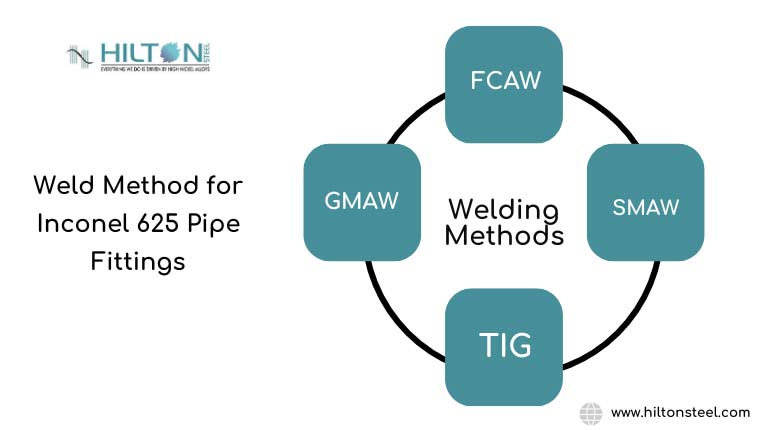

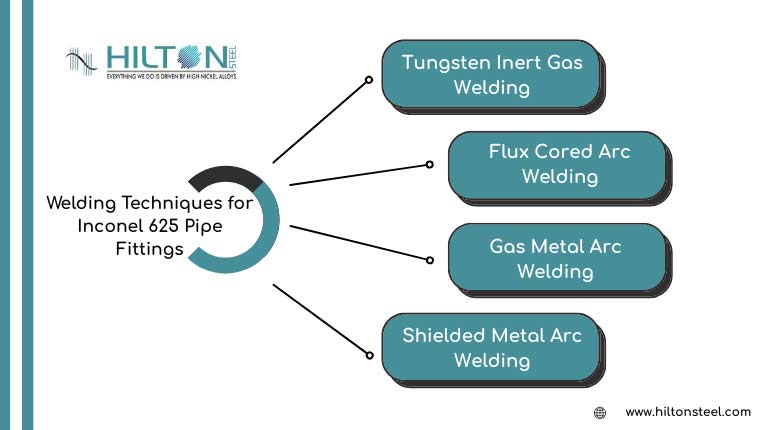

- Good choice for welding and often used as a filler metal for non-similar welding needs: Niobium helps stabilisea DIN 2.4856 reducing tee and avoids intergranular cracking.
- High fatigue life,tensile strength, and rupture resistance

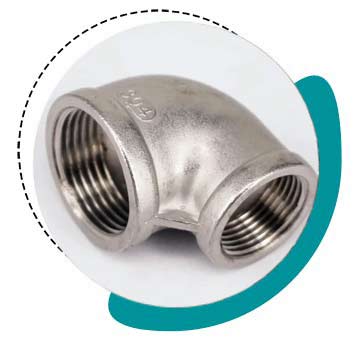

Alloy 625 elbow manufacturer in India at lowest price
These elbows efficiently manage flow in industrial pipelines under severe temperatures and pressures. An ASTM B366 WPNCMC elbow operates in chemical processing and nuclear applications like control rod components. Intensive testing ensures quality, performance, and safety.
Manufacturers run non-destructive tests like radiography and ultrasonic examination as a matter of course. They check the tensile strength, dimensional adherence, and other mechanical traits as well. This specification does not state hydrostatic testing as mandatory.
We are Inconel 625 fittings supplier in Mumbai, save costs by purchasing ASTM B366 WPNCMC tee and reducer online here
Inconel 625 pipe fittings
ASTM B366 WPNCMC elbow
Alloy 625 fittings
While placing an order for Alloy 625 fittings, customers must specify the dimensions for the diameter and thickness. The sizes for seamless fittings range from 1/2″ to 10″ NB (NB or the nominal bore denotes an approximate measurement). Welded ones have fewer limitations on the dimensions. You can easily find sizes from 1/2″ to 48″ NB. The typical wall thickness is from 2 to 40 mm.
Manufacturers adhere to internationally accepted specifications – in this case, ASTM B366, which covers fittings manufactured from wrought nickel and related alloys.
As stockist offer ASTM B366 UNS N06625 stub end and pipe cap with radiography (RT) inspection & burst test report
Table of Content
| Specification | Inconel 625 fittings testing methods | Process |
|---|---|---|
| ASTM B366 | ASME SB366 | proof test, hydrotest, NDT test, destructive | Seamless, welded, fabricated fittings |
| Seamless Fittings Size | Welded Fittings Size | Standard |
| 1/2″ to 10″ | 1/2″ – 48″ | ASME/ANSI B16.9, ASME B16.28 |
| Schedule | Inconel 625 fittings type | Fittings Thickness |
| Sch 5 to XXS | Elbow, tee, reducer, cap stub end | 10 swg. to 20 swg. |

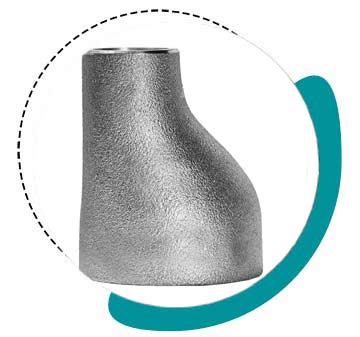

Receive a range of DIN 2.4856 concentric and eccentric reducer in all sizes (1/2 to 48 inches) with welded/ seamless condition here
Inconel 625 fittings
- Sizes: ½”NB to 24″NB
- Thickness: 1.5MM to 20MM
Nickel alloy 625 tee
- Yield strength : Psi – 75,000 , MPa – 517
- Methods: Seamless, welded, buttweld fittings
ASTM B366 UNS N06625 reducer
- Temperature: 1200°-1400°F (649-760°C)
- Schedule: SCH 5 to SCH XXS
Alloy 625 elbow
- Tensile strength : Psi – 1,35,000 , MPa – 930
- Standard: ASME B16.9, ASTM B366
DIN 2.4856 reducing tee
- Melting point: 1350 °C (2460 °F)
- Density: 8.4 g/cm3
Inconel 625 buttweld fittings
- proof test
- hydrotest
- NDT test
| Nominal Pipe Size |
Outside Diameter |
Reducers | ||
|---|---|---|---|---|
| Reduced from (Inch) |
(mm) | (Inch) | Reduced to (Inch) |
Concentric & Eccentric Length (Inch) |
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
| Inconel 625 fittings Tolerance | |||||||
|---|---|---|---|---|---|---|---|
| Common Type Of Buttweld Fittings | 45 degree elbows And 90 deg elbows fittings | 180 Deg Returns | |||||
| Normal Size Of Steel Pipe | ID at End |
OD at Bevel |
WT For (Wall Thickness) t / t1 |
Center-End Dai. A-B-C-M | Back-Face Dai. (K) |
Center-Center Dai. (O) |
Align-ment of Ends (U) |
| 3 a 3 1/2 | 1,6 | 1 | less | 2 | 7 | 7 | 1 |
| 1/2 a 2 1/2 | 0,8 | 1 | Not | 2 | 7 | 7 | 1 |
| 32 a 48 | 4,8 | +7 -5 | 5 | – | – | – | – |
| 4 | 1,6 | +2 -1 | than | 2 | 7 | 7 | 1 |
| 8 | 1,6 | 2 | of nominal | 2 | 7 | 7 | 1 |
| 5 a 6 | 1,6 | +3 -1 | 87,50% | 2 | 7 | 7 | 1 |
| 10 | 3,2 | +4 -3 | tickness | 2 | 7 | 7 | 2 |
| 20 a 24 | 4,8 | +6 -5 | 3 | 10 | 2 | 7 | |
| 12 a 18 | 3,2 | +4 -3 | 3 | 10 | 2 | 7 | |
| 26 a 30 | 4,8 | +7 -5 | 3 | – | – | – | – |
| NPS (Normal Pipe Size) | OD(Outside Diameter) | 45 Deg Elbow | 90 Deg Elbow Fittings | 180 Deg Return Elbow | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| inch | mm | Radius (Inch) |
Center to Face (Inch) |
Center to Face (Inch) |
Center to Face (Inch) |
Back to face (Inch) |
Center to Center (Inch) |
|
| 3/4 | 1.050 | 26.7 | 7/16 | – | 1 1/8 | 1 11/16 | 2 1/4 | |
| 1/2 | 0.840 | 21.3 | 5/8 | – | 1 1/2 | 1 7/8 | 2 | |
| 1 1/4 | 1.660 | 42.2 | 1 | 1 1/4 | 1 7/8 | 2 3/4 | 3 3/4 | |
| 1 | 1.315 | 33.4 | 7/8 | 1 | 1 1/2 | 2 3/16 | 3 | |
| 1 1/2 | 1.900 | 48.3 | 3 | 1 1/8 | 1 1/2 | 2 1/4 | 3 1/4 | 4 1/2 |
| 2 1/2 | 2.875 | 73.0 | 5 | 1 3/4 | 2 1/2 | 3 3/4 | 5 3/16 | 7 1/2 |
| 2 | 2.375 | 60.3 | 4 | 1 3/8 | 2 | 3 | 4 3/16 | 6 |
| 3 1/2 | 4.000 | 101.6 | 7 | 2 1/4 | 3 1/2 | 5 1/4 | 7 1/4 | 10 1/2 |
| 3 | 3.500 | 88.9 | 6 | 2 | 3 | 4 1/2 | 6 1/4 | 9 |
| 5 | 5.563 | 141.3 | 10 | 3 1/8 | 5 | 7 1/2 | 10 5/16 | 15 |
| 4 | 4.500 | 114.3 | 8 | 2 1/2 | 4 | 6 | 8 1/4 | 12 |
| 6 | 6.625 | 168.3 | 12 | 3 3/4 | 6 | 9 | 12 5/16 | 18 |
| 10 | 10.750 | 273.1 | 15 | 6 1/4 | 10 | 15 | 20 3/8 | 30 |
| 8 | 8.625 | 219.1 | 12 | 5 | 8 | 12 | 16 5/16 | 24 |
| 12 | 12.750 | 323.9 | 18 | 7 1/2 | 12 | 18 | 24 3/8 | 36 |
| Construction | Inconel 625 fittings Classes | Non-destructive Exam |
|---|---|---|
| Welded | WX | Radiography |
| Welded | W | Radiography or Ultrasonic |
| Seamless | S | None |
| Welded | WU | Ultrasonic |
| NPS For Elbow Fittings | KG | LBS |
|---|---|---|
| 2-1¼ | 0.54 | 1.2 |
| 2-1½ | 0.59 | 1.3 |
| 2-3/4 | – | – |
| 2-1 | 0.5 | 1.1 |
| 2½-1½ | 1 | 2.2 |
| 2½-2 | 1.11 | 2.45 |
| 2½-1 | – | – |
| 3-2½ | 1.88 | 4.15 |
| 2½-1¼ | 0.95 | 2.1 |
| 3-1½ | 1.45 | 3.2 |
| 3-1¼ | – | – |
| 3-2 | 1.59 | 3.5 |
| 3½-3 | 2.72 | 6 |
| 3½-2 | 2.04 | 4.5 |
| 3½-1½ | – | – |
| 3½-2½ | 2.45 | 5.4 |
| 3½-1¼ | – | – |
| 4-3 | 3.4 | 7.5 |
| 4-3½ | 3.72 | 8.2 |
| 4-2 | 2.7 | 5.95 |
| 4-1½ | – | – |
| 4-2½ | 4.76 | 10.5 |
| 5-4 | 5.94 | 13.1 |
| 5-3 | 5.17 | 11.4 |
| 5-3½ | 5.53 | 12.2 |
| 5-2½ | 4.76 | 10.5 |
| 6-5 | 9.39 | 20.7 |
| 5-2 | – | – |
| 6-4 | 8.35 | 18.4 |
| 6-3 | 7.44 | 16.4 |
| 6-3½ | 7.85 | 17.3 |
| 6-2½ | – | – |
| 8-5 | 16.1 | 35.5 |
| 8-6 | 17.78 | 39.2 |
| 8-4 | 14.7 | 32.4 |
| 10-8 | 32.3 | 71.2 |
| 8-3½ | – | – |
| 10-6 | 27.76 | 61.2 |
| 10-4 | – | – |
| 10-5 | 25.72 | 56.7 |
| 12-8 | 43.77 | 96.5 |
| 12-10 | 50.58 | 111.5 |
| 12-6 | 38.42 | 84.7 |
- MSS SP-43
- ASME B16.9 Fittings
- ASME SA182/ASTM A182
- ASME B16.11
- MSS SP-95 BS3799
| Inconel 625 fittings pressure-temperature ratings (psig) | |||||
|---|---|---|---|---|---|
| Ratings of Temperature | Fittings Pressure Class | ||||
| 150 | 300 | ||||
| 1 1/4 – 2 inch. | 1/4 – 1 inch. | 2 1/2 – 3 inch. | |||
| (oC) | (oF) | ||||
| 93 | 200 | 265 | 1350 | 1785 | 910 |
| -29 to 66 | -20 to 150 | 300 | 1500 | 2000 | 1000 |
| 149 | 300 | 185 | 1050 | 1360 | 735 |
| 121 | 250 | 225 | 1200 | 1575 | 825 |
| 204 | 400 | – | 750 | 935 | 560 |
| 177 | 350 | 150 | 900 | 1150 | 650 |
| 260 | 500 | – | 450 | 510 | 385 |
| 232 | 450 | – | 600 | 725 | 475 |
| 288 | 550 | – | 300 | 300 | 300 |
| Welded Fittings | Seamless Fittings | |
|---|---|---|
| Elbows | Up to 42″ | Up to 24″ |
| End Caps | – | Up to 24″ |
| Tees | Upto 36″ | Upto 24″ |
| Return Bends | – | Up to 8″ |
| Reducers | Up to 48″ | Up to 24″ |
| Swage Nipple | – | Up to 4″ |
| Cross | Upto 36″ | Upto 8″ |
Request quotes for excellent Inconel 625 buttweld fittings including short/ long radius elbow and reducing / equal/ lateral tee with MTC and ultrasonic testing certificates
| Grade | Si | Cu | C | Mn | S | Fe | Cr | Ni |
|---|---|---|---|---|---|---|---|---|
| Inconel 625 fittings | 0.50 maximum | – | 0.10 maximum | 0.50 maximum | 0.015 maximum | 5.0 maximum | 20.0 – 23.0 | 58.0 min |
| Element | Tensile Strength | Density | Elongation | Melting Point | Yield Strength (0.2%Offset) |
|---|---|---|---|---|---|
| Inconel 625 fittings | Psi – 1,35,000 , MPa – 930 | 8.4 g/cm3 | 42.5 % | 1350 °C (2460 °F) | Psi – 75,000 , MPa – 517 |
| STANDARD | JIS | WERKSTOFF NR. | UNS | AFNOR | BS | GOST | EN |
|---|---|---|---|---|---|---|---|
| Inconel 625 fittings | NCF 625 | 2.4856 | N06625 | NC22DNB4M | NA 21 | ХН75МБТЮ | NiCr22Mo9Nb |
High pressures are not an issue for these sturdy fittings, boasting a high tensile strength of 930 MPa and yield strength of 517 MPa. You can obtain Inconel 625 fittings that withstand pressures of more than 10,000 psi.
The pressure class refers to the maximum pressure the fittings can tolerate at a specific temperature. So, the class gets assigned based on pressure, temperature, and material. For example, Inconel 625 tube fittings show a tensile strength of 13,300 psi at 2,000°F.
These tees function in high-temperature and corrosive environments. A Nickel alloy 625 tee can resist hydrogen sulphide, ammonia, and sour gas in condensers, exhausts, and aircraft ducting systems. Accordingly, manufacturers use protective coatings.
The options for Inconel 625 buttweld fittingsarezinc (galvanisation), phosphate, PTFE, Teflon, and Xylan. These tees also deliver excellent strength when annealed.
Inconel is costly, with the price of Alloy 625 between Rs 3000 to 3300 a kilogram. The prices are steep mainly because of the complexity of the production and the inclusion of elements like nickel and chromium (both are expensive).
The price of an ASTM B366 UNS N06625 concentric reducer depends on the size and thickness. Non-standard sizes are usually costlier. The market demand, current global trends, and consistent availability of good raw materials are of significance. We advise building long-term relationships with trusted suppliers who have an extensive portfolio of reducers. You can get affordable deals and save on logistical costs too.
